Tracing SDK

The Perfetto Tracing SDK is a C++17 library that allows userspace applications to emit trace events and add more app-specific context to a Perfetto trace.

When using the Tracing SDK there are two main aspects to consider:

  1. Whether you are interested only in tracing events coming from your own app or want to collect full-stack traces that overlay app trace events with system trace events like scheduler traces, syscalls or any other Perfetto data source.

  2. For app-specific tracing, whether you need to trace simple types of timeline events (e.g., slices, counters) or need to define complex data sources with a custom strongly-typed schema (e.g., for dumping the state of a subsystem of your app into the trace).

For Android-only instrumentation, the advice is to keep using the existing android.os.Trace (SDK) / ATrace_* (NDK) if they are sufficient for your use cases. Atrace-based instrumentation is fully supported in Perfetto. See the Data Sources -> Android System -> Atrace Instrumentation for details.

Getting started

TIP: The code from these examples is also available in the repository.

To start using the Client API, first check out the latest SDK release:

git clone -b v29.0

The SDK consists of two files, sdk/perfetto.h and sdk/ These are an amalgamation of the Client API designed to easy to integrate to existing build systems. The sources are self-contained and require only a C++17 compliant standard library.

For example, to add the SDK to a CMake project, edit your CMakeLists.txt:

cmake_minimum_required(VERSION 3.13) project(PerfettoExample) find_package(Threads) # Define a static library for Perfetto. include_directories(perfetto/sdk) add_library(perfetto STATIC perfetto/sdk/ # Link the library to your main executable. add_executable(example target_link_libraries(example perfetto ${CMAKE_THREAD_LIBS_INIT}) if (WIN32) # The perfetto library contains many symbols, so it needs the big object # format. target_compile_options(perfetto PRIVATE "/bigobj") # Disable legacy features in windows.h. add_definitions(-DWIN32_LEAN_AND_MEAN -DNOMINMAX) # On Windows we should link to WinSock2. target_link_libraries(example ws2_32) endif (WIN32) # Enable standards-compliant mode when using the Visual Studio compiler. if (MSVC) target_compile_options(example PRIVATE "/permissive-") endif (MSVC)

Next, initialize Perfetto in your program:

#include <perfetto.h> int main(int argc, char** argv) { perfetto::TracingInitArgs args; // The backends determine where trace events are recorded. You may select one // or more of: // 1) The in-process backend only records within the app itself. args.backends |= perfetto::kInProcessBackend; // 2) The system backend writes events into a system Perfetto daemon, // allowing merging app and system events (e.g., ftrace) on the same // timeline. Requires the Perfetto `traced` daemon to be running (e.g., // on Android Pie and newer). args.backends |= perfetto::kSystemBackend; perfetto::Tracing::Initialize(args); }

You are now ready to instrument your app with trace events.

Custom data sources vs Track events

The SDK offers two abstraction layers to inject tracing data, built on top of each other, which trade off code complexity vs expressive power: track events and custom data sources.

Track events

Track events are the suggested option when dealing with app-specific tracing as they take care of a number of subtleties (e.g., thread safety, flushing, string interning). Track events are time bounded events (e.g., slices, counter) based on simple TRACE_EVENT annotation tags in the codebase, like this:

#include <perfetto.h> PERFETTO_DEFINE_CATEGORIES( perfetto::Category("rendering") .SetDescription("Events from the graphics subsystem"), perfetto::Category("network") .SetDescription("Network upload and download statistics")); PERFETTO_TRACK_EVENT_STATIC_STORAGE(); ... int main(int argc, char** argv) { ... perfetto::Tracing::Initialize(args); perfetto::TrackEvent::Register(); } ... void LayerTreeHost::DoUpdateLayers() { TRACE_EVENT("rendering", "LayerTreeHost::DoUpdateLayers"); ... for (PictureLayer& pl : layers) { TRACE_EVENT("rendering", "PictureLayer::Update"); pl.Update(); } }

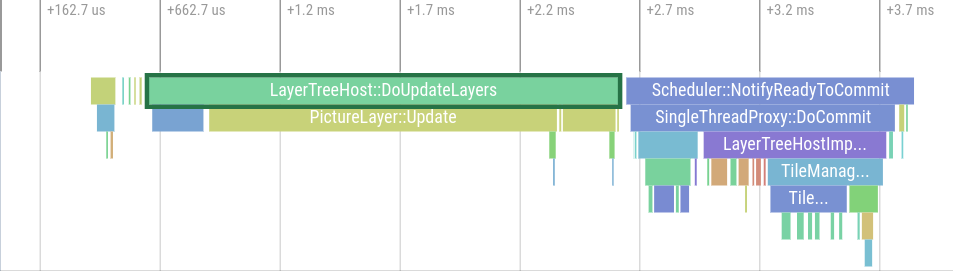

Which are rendered in the UI as follows:

Track event example

Track events are the best default option and serve most tracing use cases with very little complexity.

To include your new track events in the trace, ensure that the track_event data source is included in the trace config. If you do not specify any categories then all non-debug categories will be included by default. However, you can also add just the categories you are interested in like so:

data_sources { config { name: "track_event" track_event_config { enabled_categories: "rendering" } } }

See the Track events page for full instructions.

Custom data sources

For most uses, track events are the most straightforward way of instrumenting apps for tracing. However, in some rare circumstances they are not flexible enough, e.g., when the data doesn't fit the notion of a track or is high volume enough that it needs a strongly typed schema to minimize the size of each event. In this case, you can implement a custom data source for Perfetto.

Unlike track events, when working with custom data sources, you will also need corresponding changes in trace processor to enable importing your data format.

A custom data source is a subclass of perfetto::DataSource. Perfetto will automatically create one instance of the class for each tracing session it is active in (usually just one).

class CustomDataSource : public perfetto::DataSource<CustomDataSource> { public: void OnSetup(const SetupArgs&) override { // Use this callback to apply any custom configuration to your data source // based on the TraceConfig in SetupArgs. } void OnStart(const StartArgs&) override { // This notification can be used to initialize the GPU driver, enable // counters, etc. StartArgs will contains the DataSourceDescriptor, // which can be extended. } void OnStop(const StopArgs&) override { // Undo any initialization done in OnStart. } // Data sources can also have per-instance state. int my_custom_state = 0; }; PERFETTO_DECLARE_DATA_SOURCE_STATIC_MEMBERS(CustomDataSource);

The data source's static data should be defined in one source file like this:


Custom data sources need to be registered with Perfetto:

int main(int argc, char** argv) { ... perfetto::Tracing::Initialize(args); // Add the following: perfetto::DataSourceDescriptor dsd; dsd.set_name("com.example.custom_data_source"); CustomDataSource::Register(dsd); }

As with all data sources, the custom data source needs to be specified in the trace config to enable tracing:

perfetto::TraceConfig cfg; auto* ds_cfg = cfg.add_data_sources()->mutable_config(); ds_cfg->set_name("com.example.custom_data_source");

Finally, call the Trace() method to record an event with your custom data source. The lambda function passed to that method will only be called if tracing is enabled. It is always called synchronously and possibly multiple times if multiple concurrent tracing sessions are active.

CustomDataSource::Trace([](CustomDataSource::TraceContext ctx) { auto packet = ctx.NewTracePacket(); packet->set_timestamp(perfetto::TrackEvent::GetTraceTimeNs()); packet->set_for_testing()->set_str("Hello world!"); });

If necessary the Trace() method can access the custom data source state (my_custom_state in the example above). Doing so, will take a mutex to ensure data source isn't destroyed (e.g., because of stopping tracing) while the Trace() method is called on another thread. For example:

CustomDataSource::Trace([](CustomDataSource::TraceContext ctx) { auto safe_handle = trace_args.GetDataSourceLocked(); // Holds a RAII lock. DoSomethingWith(safe_handle->my_custom_state); });

In-process vs System mode

The two modes are not mutually exclusive. An app can be configured to work in both modes and respond both to in-process tracing requests and system tracing requests. Both modes generate the same trace file format.

In-process mode

In this mode both the perfetto service and the app-defined data sources are hosted fully in-process, in the same process of the profiled app. No connection to the system traced daemon will be attempted.

In-process mode can be enabled by setting TracingInitArgs.backends = perfetto::kInProcessBackend when initializing the SDK, see examples below.

This mode is used to generate traces that contain only events emitted by the app, but not other types of events (e.g. scheduler traces).

The main advantage is that by running fully in-process, it doesn't require any special OS privileges and the profiled process can control the lifecycle of tracing sessions.

This mode is supported on Android, Linux, MacOS and Windows.

System mode

In this mode the app-defined data sources will connect to the external traced service using the IPC over UNIX socket.

System mode can be enabled by setting TracingInitArgs.backends = perfetto::kSystemBackend when initializing the SDK, see examples below.

The main advantage of this mode is that it is possible to create fused traces where app events are overlaid on the same timeline of OS events. This enables full-stack performance investigations, looking all the way through syscalls and kernel scheduling events.

The main limitation of this mode is that it requires the external traced daemon to be up and running and reachable through the UNIX socket connection.

This is suggested for local debugging or lab testing scenarios where the user (or the test harness) can control the OS deployment (e.g., sideload binaries on Android).

When using system mode, the tracing session must be controlled from the outside, using the perfetto command-line client (See reference). This is because when collecting system traces, tracing data producers are not allowed to read back the trace data as it might disclose information about other processes and allow side-channel attacks.

System mode is not yet supported on Windows, due to the lack of an IPC implementation.

Recording traces through the API

Tracing through the API is currently only supported with the in-process mode. When using system mode, use the perfetto cmdline client (see quickstart guides).

First initialize a TraceConfig message which specifies what type of data to record.

If your app includes track events (i.e, TRACE_EVENT), you typically want to choose the categories which are enabled for tracing.

By default, all non-debug categories are enabled, but you can enable a specific one like this:

perfetto::protos::gen::TrackEventConfig track_event_cfg; track_event_cfg.add_disabled_categories("*"); track_event_cfg.add_enabled_categories("rendering");

Next, build the main trace config together with the track event part:

perfetto::TraceConfig cfg; cfg.add_buffers()->set_size_kb(1024); // Record up to 1 MiB. auto* ds_cfg = cfg.add_data_sources()->mutable_config(); ds_cfg->set_name("track_event"); ds_cfg->set_track_event_config_raw(track_event_cfg.SerializeAsString());

If your app includes a custom data source, you can also enable it here:

ds_cfg = cfg.add_data_sources()->mutable_config(); ds_cfg->set_name("my_data_source");

After building the trace config, you can begin tracing:

std::unique_ptr<perfetto::TracingSession> tracing_session( perfetto::Tracing::NewTrace()); tracing_session->Setup(cfg); tracing_session->StartBlocking();

TIP: API methods with Blocking in their name will suspend the calling thread until the respective operation is complete. There are also asynchronous variants that don't have this limitation.

Now that tracing is active, instruct your app to perform the operation you want to record. After that, stop tracing and collect the protobuf-formatted trace data:

tracing_session->StopBlocking(); std::vector<char> trace_data(tracing_session->ReadTraceBlocking()); // Write the trace into a file. std::ofstream output;"example.perfetto-trace", std::ios::out | std::ios::binary); output.write(&trace_data[0], trace_data.size()); output.close();

To save memory with longer traces, you can also tell Perfetto to write directly into a file by passing a file descriptor into Setup(), remembering to close the file after tracing is done:

int fd = open("example.perfetto-trace", O_RDWR | O_CREAT | O_TRUNC, 0600); tracing_session->Setup(cfg, fd); tracing_session->StartBlocking(); // ... tracing_session->StopBlocking(); close(fd);

The resulting trace file can be directly opened in the Perfetto UI or the Trace Processor.
