Screen Recording

The android.display.video data source records what each physical display showed while a trace was being captured. Perfetto stores the frames as an encoded video stream inside the trace, and the UI adds a per-display timeline track that decodes them in the browser. You can hover the track to preview a frame, play the frames back like a video, and click any frame to line it up with the tracks below it.

It records the actual contents of the screen, so it is meant for userdebug (debuggable) devices only, and any trace that contains it is sensitive: it shows exactly what was on the display.

This guide covers:

How it works, and what it costs — how the frames get into the trace, and the overhead on the device.
Capturing display video: the three ways to turn it on — the on-device toggle, the record page, and a raw config with full control over quality and size.
Viewing display video: the timeline track, hovering to preview a frame, and playing the capture back with the timeline kept in sync.

How it works, and what it costs

While the data source is enabled, the device encodes what each display shows into a video stream stored in the trace — one frame each time the screen changes — and the UI decodes it back in the browser. This has two costs:

Encoder and CPU overhead. Encoding frames uses the device's video encoder while the trace runs. On a busy display this adds load and can perturb the timing you are measuring.
Trace size. The stream grows with resolution and with how much the screen changes; the scale and max_stream_size_bytes options below keep it bounded.

When the data source is off, it costs nothing.

Capturing display video

There are three ways to turn on display-video capture, from the simplest to the most control.

On the device, with System Tracing

The System Tracing app has a Record display video toggle under Trace settings. Enable it, then record a trace as usual — the capture is included automatically. This is the quickest route on a device you are holding — no config to write.

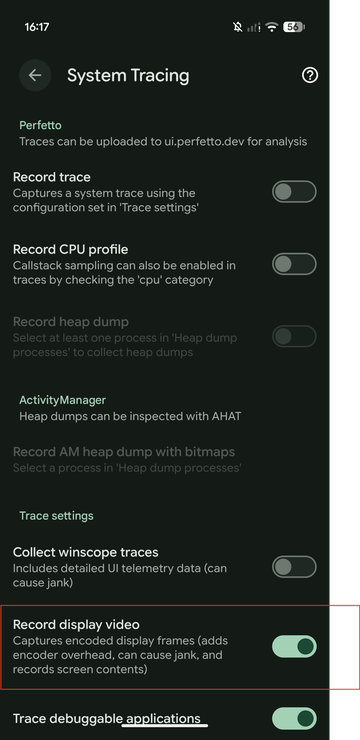

The "Record display video" toggle in the System Tracing app's Trace settings, enabled, described as "Captures encoded display frames (adds encoder overhead, can cause jank, and records screen contents)".

From the record page

Open the Perfetto UI record page, find Display video frames under the Android probes, and enable it. This adds the android.display.video data source to the generated config with the producer's default settings.

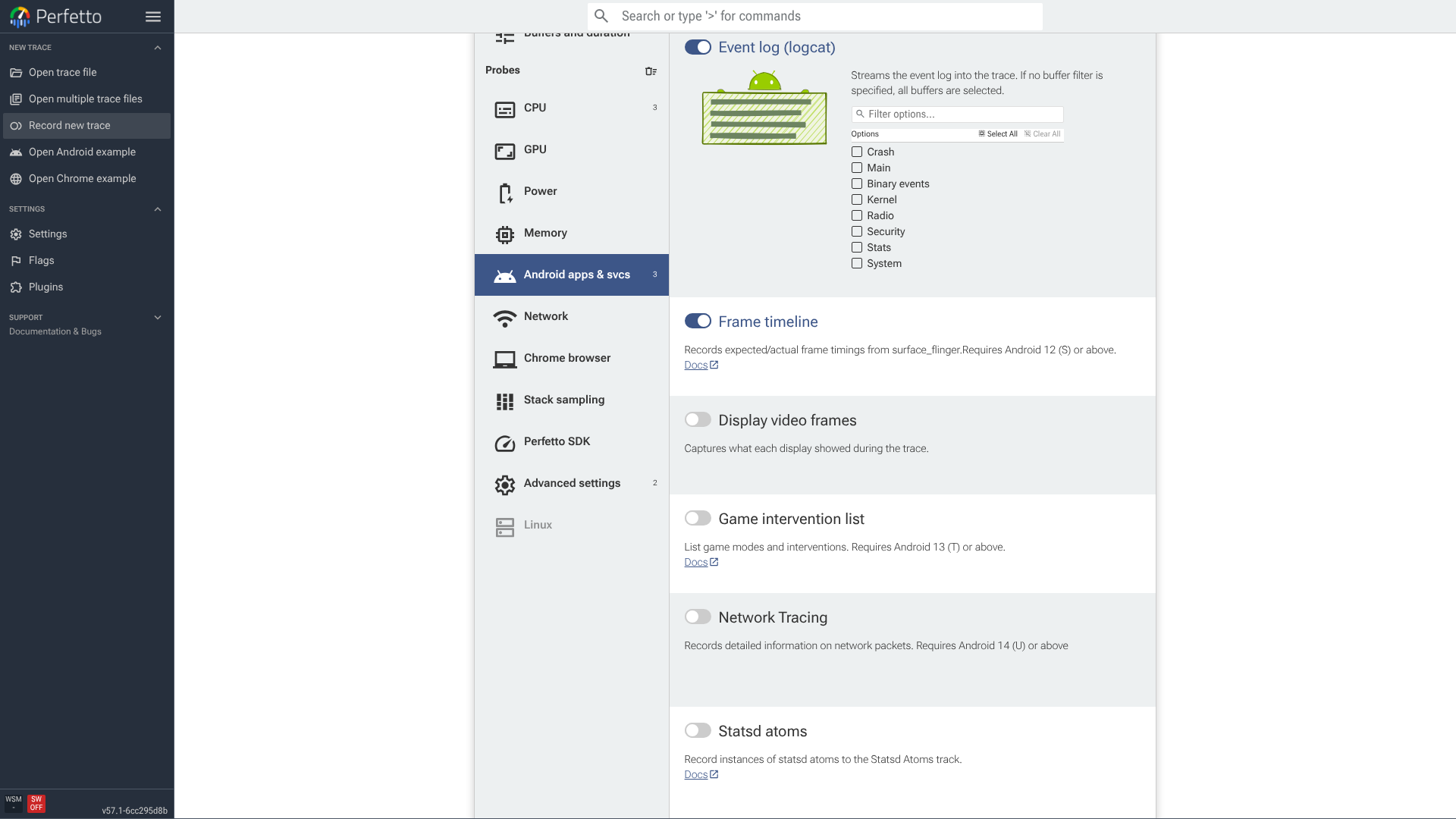

The Perfetto record page with "Android apps & svcs" selected in the sidebar; the "Display video frames" probe sits in the probe list, toggled off, captioned "Captures what each display showed during the trace."

From a raw trace config

For full control, write the config yourself. Enable android.display.video, and add a display_video_config to set quality and size. With no options, each display uses the device's default settings:

data_sources {
  config {
    name: "android.display.video"
  }
}

Add a display_video_config to tune the capture. Every field is optional; an unset or zero field uses the producer default.

data_sources {
  config {
    name: "android.display.video"
    display_video_config {
      scale: 0.5
      format: FORMAT_H264
      key_frame_interval_secs: 2
      max_stream_size_bytes: 67108864  # 64 MiB per display
    }
  }
}

Option	Description
`scale`	Factor applied to each display's resolution before capture, e.g. `0.5` for half size or `0.25` for quarter. Lower scale means less encoder load and a smaller trace, at the cost of detail.
`format`	`FORMAT_H264` (the default) or `FORMAT_HEVC`. HEVC produces a smaller stream at the same quality, but the device must support HEVC encoding to capture it and the browser must support HEVC decoding to preview it.
`key_frame_interval_secs`	How often a keyframe is emitted. Smaller values make seeking snappier but grow the trace; larger values are more compact but slower to scrub.
`max_stream_size_bytes`	A per-display cap on emitted bytes. When a display hits it, its stream is torn down (a size-cap error) rather than growing without bound. Left unset, the device applies a default cap of 256 MiB per display.

Size limits

Display video is limited to 256 MiB per display, enforced in two separate places:

On the device, max_stream_size_bytes caps how much each stream emits (256 MiB by default; a size-cap error is recorded when it is hit).
Independently, trace_processor drops any frames beyond 256 MiB per stream when it loads the trace, so raising the on-device cap alone will not get you more frames in the UI.

On a long session or at a high resolution, the video can therefore stop before the end of the trace. Both limits exist because of the memory cost of holding the stream, not a fundamental constraint. If they get in your way, comment on and upvote the tracking issue so it can be prioritised: perfetto#6609.

Viewing display video

The timeline track

A trace that contains display video shows a Video Frames group with one track per display (for a phone, typically a single Built-in Screen). Each slice on the track is one captured frame, labelled with a frame number. That number is just a sequential counter of captured frames — it has nothing to do with the vsync ids in the frame timeline.

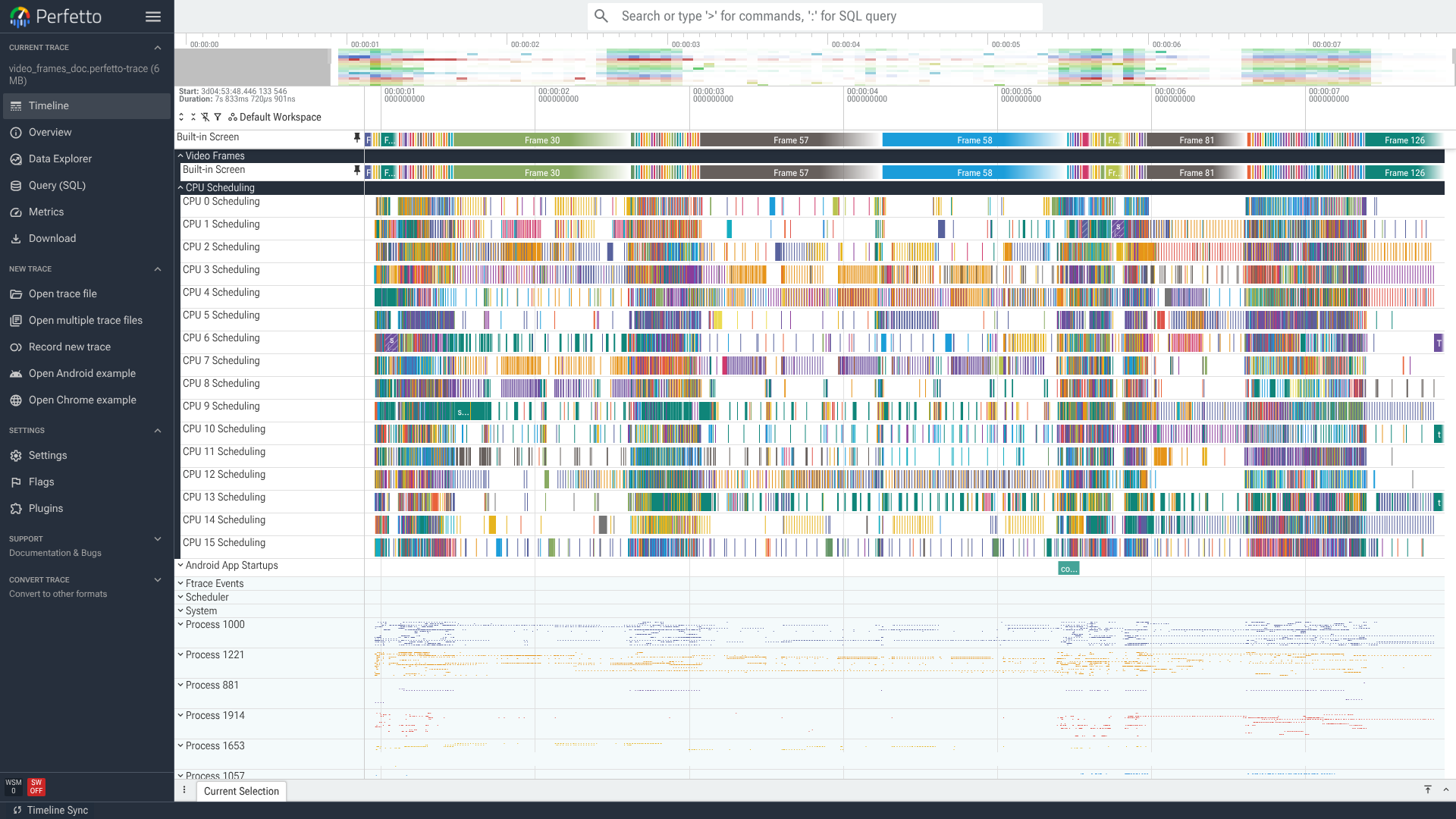

The Perfetto timeline with the "Video Frames" group's "Built-in Screen" track pinned to the top — a row of coloured slices labelled Frame 30, Frame 57, and so on — above the CPU scheduling tracks.

Hovering to preview a frame

Move the pointer along the track to preview frames. The frame under the cursor is decoded and shown as a thumbnail above the row, so you can scrub to find the frame you want.

Sweeping the cursor along the video-frames track; a decoded thumbnail of the frame under the cursor follows along above the row, updating as the cursor moves.

Playing back

Click a frame to open its details. The panel shows the frame number and timestamp on the left and a decoded Preview on the right, with playback controls in the header: previous frame, play/pause, next frame, and a playback-speed selector. Press play and the capture runs as a video: the preview advances through the frames and the timeline selection moves with it, so the rest of the UI stays lined up with what is on screen. Step one frame at a time with the previous/next buttons, or change the speed selector to play back slower (down to 0.1×) or faster (up to 2×).

Playing a display-video capture back with the video-frames track pinned at the top: in the details panel the decoded preview advances from the settings screen to the launcher while the frame number and timestamp update.
